Nano Perforated Acoustic Wood Panel wall and ceiling

Nano-perforated wood acoustic wall and ceiling panels are chosen for their ability to combine superior acoustic properties with natural beauty, customization options, sustainability, and compatibility with modern building technologies. They are ideal for creating comfortable, aesthetically pleasing, and acoustically optimized environments in various commercial, educational, and residential settings. these panels are engineered to absorb sound waves effectively across a broad range of frequencies. This helps in reducing reverberation, controlling echoes, and improving overall speech intelligibility within a space. They are particularly effective in environments where clear communication is critical, such as offices, conference rooms, and auditoriums.

​Nano-perforated wood panels are typically durable and easy to maintain, offering long-term acoustic performance without significant upkeep requirements

These panels can be customized in terms of size, shape, pattern, and finish to suit specific architectural and design requirements. This allows architects and interior designers to integrate acoustic solutions seamlessly into different interior styles and concepts.

Common

Dimensions (max.)

:

3000 x 1550 mm

Special dimensions(max)

:

4000 x 1250 mm

Standard thicknesses

Weight

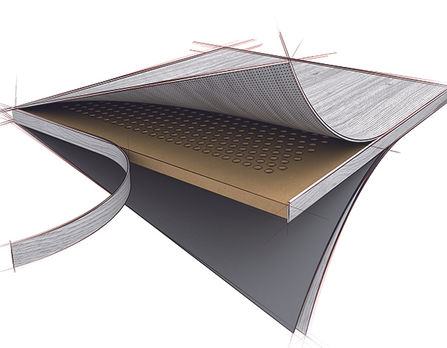

Core material

Honeycomb

Frame construction:

Edgebanding

:

19 or 16 mm (other thicknesses on request)

:

approx. 7 kg/m²

:

Honeycomb structure with acoustical fleece

:

18 or 15 mm (optional)

:

Perimeter frame – 25 or 50 mm (Other widths on request)

:

0.6 mm, 1 or 2 mm wood veneer, 1 or 2mm ABS.

Groove-, rabbet and mitre millings on request

Custom ceiling clouds and radius panels are also avaialble on designers / architects specific request

Acoustic Graph

Surfaces

Types

Finishes

Overlay thickness

Front

Back

Open perforated area

:

Front and back with HPL, wood veneer (natural or stained), custom lacquer finishes or raw HDF – finished sanded.

:

Clear catalyzed water borne lacquer. Silk matte sheen. Optional sheen on request.

:

0.9 mm (0.5 mm veneer / 0.4 mm CPL-Layer) | 0.5 mm HPL

:

Microperforation 0.5 mm – up to 319,201 holes per m²

:

RU 0510-perforation with internal acoustical non-woven lamination

:

6.3 %
